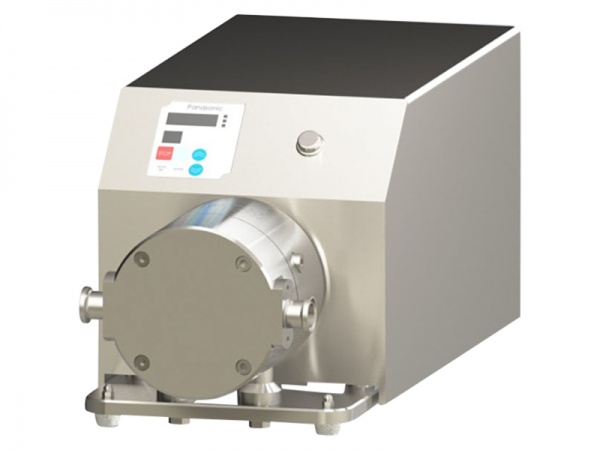

Description
- Applications include filtration systems (TFF, etc.), chromatography systems, feeding pump, virus filtration and sterile filtration
- Minimal maintenance and downtime required
- Low shear
- Variable flow
- High purity
- CIP & SIP (multiple use only)
- Available accessories: Power box, diaphragm sensor, PID pressure controller
- 4-piston diaphragm positive displacement pump ensures total product containment
- Low pulsation
- Superior containment
- No particle shedding
- Quiet operation
- USP Class VI

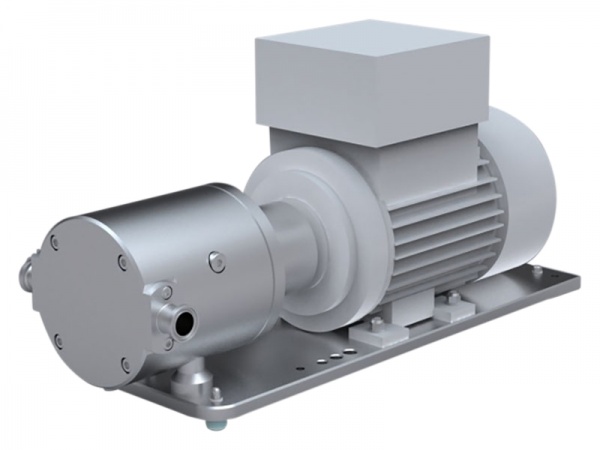

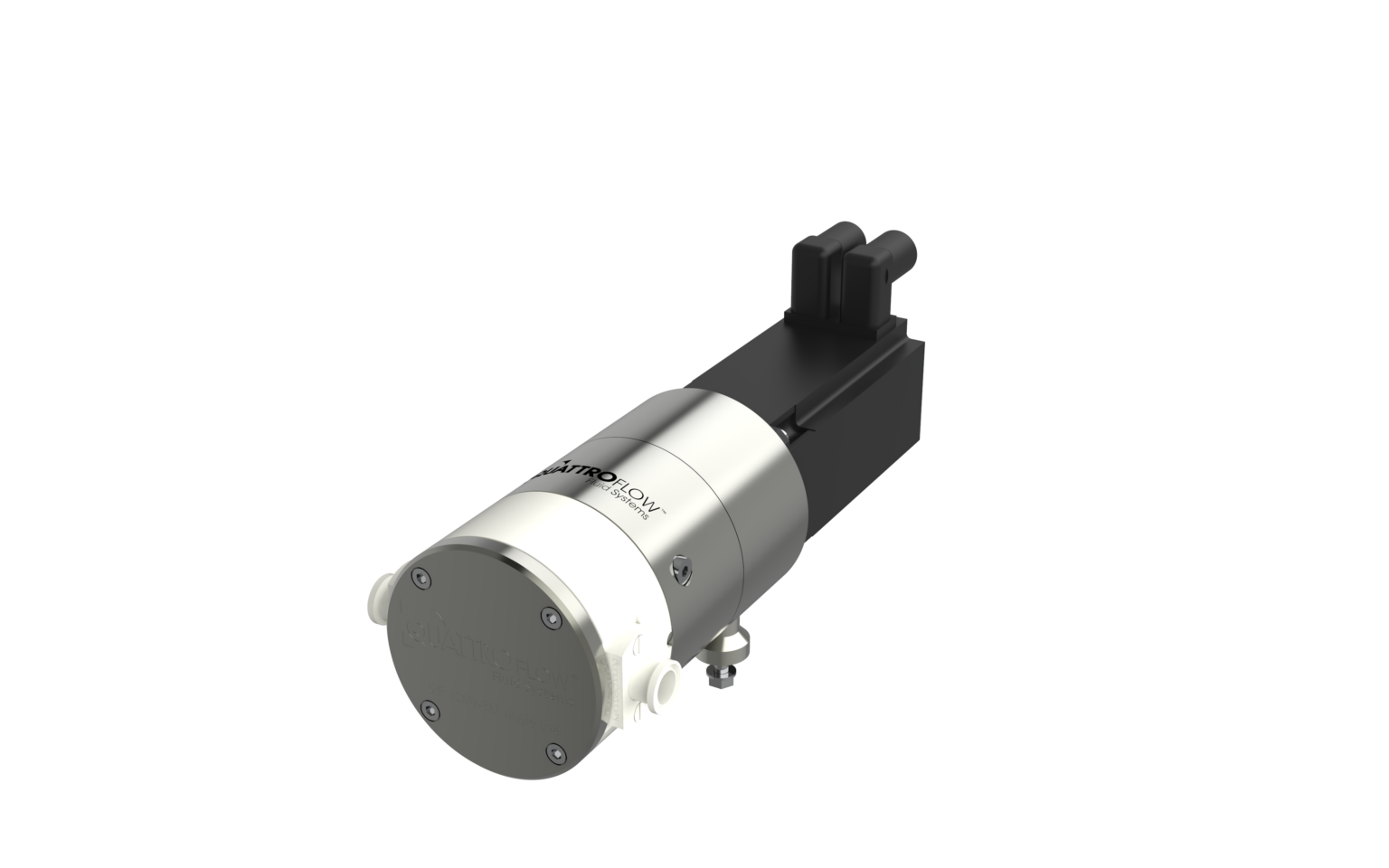

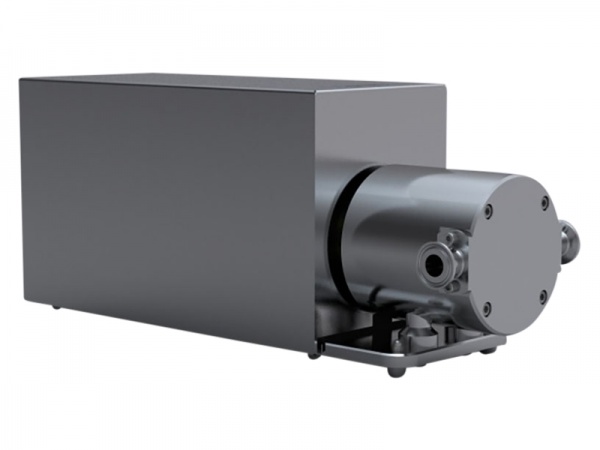

Talk to us about the QF1200HT that is available as a caseless OEM pump for integration on a skid

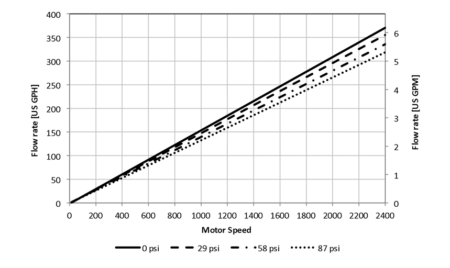

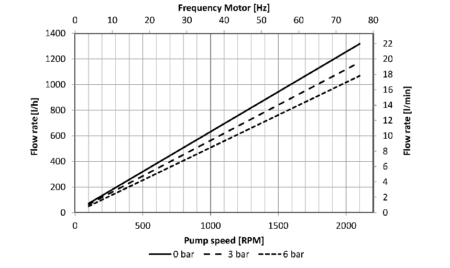

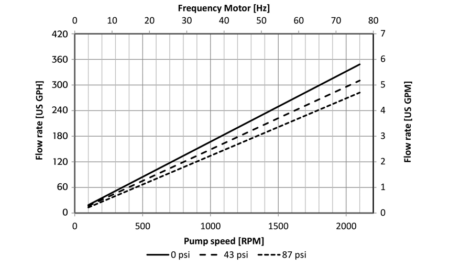

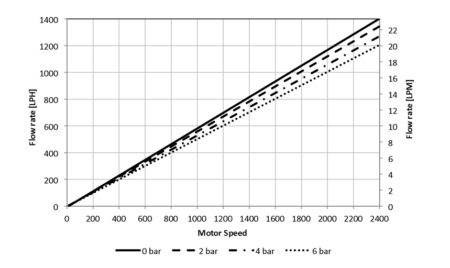

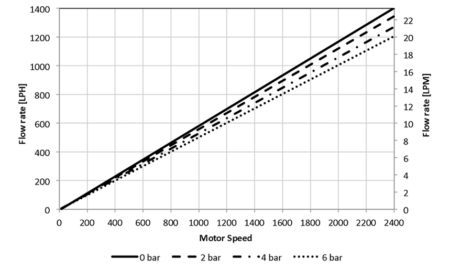

Multi-Use Performance
Multi-Use Technical Data

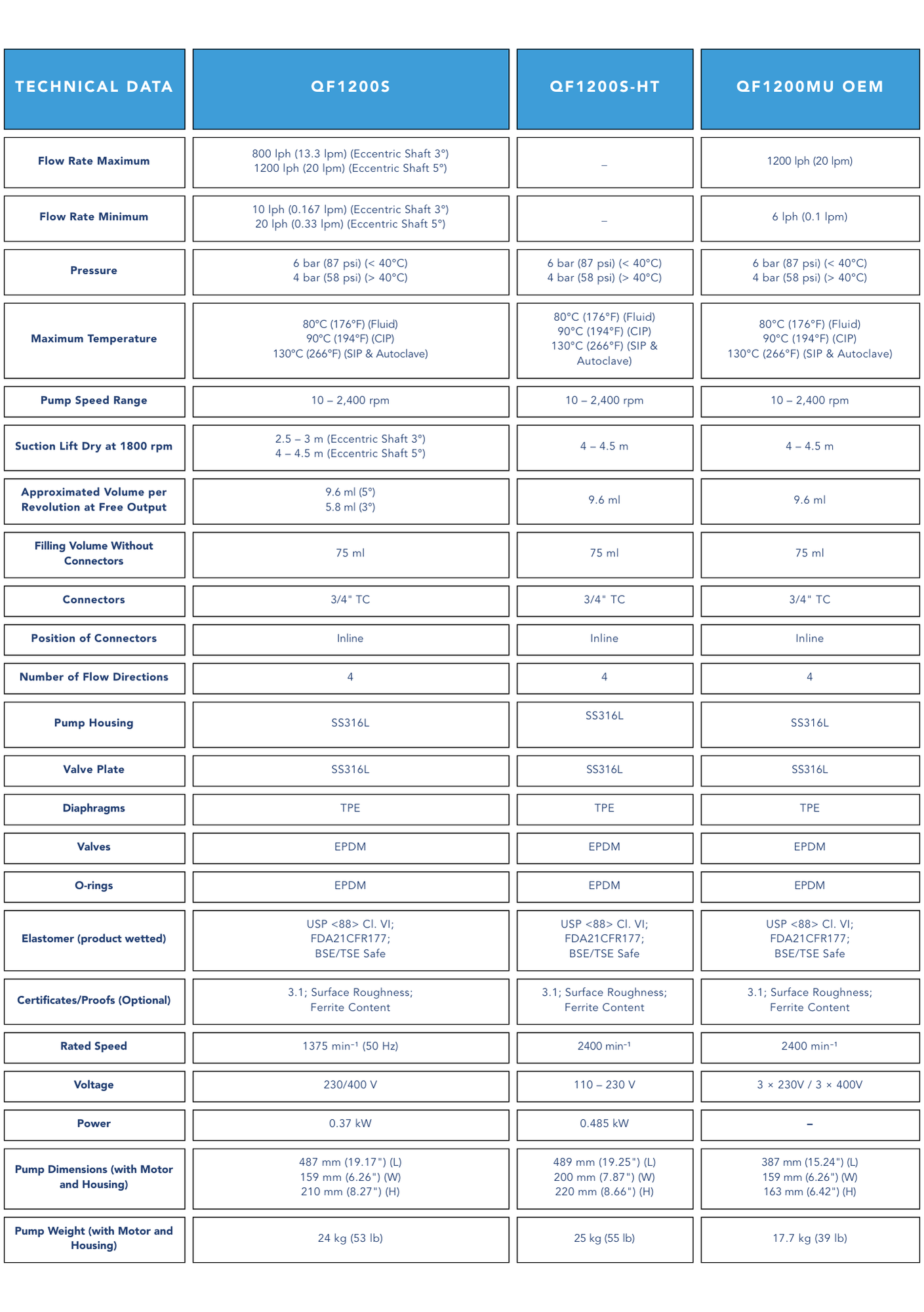

| STANDARD MOTOR | QF1200S | QF1200S-HT | QF1200MU OEM | |
|---|---|---|---|---|
| Flow Rate Maximum | Eccentric Shaft 3° | 800 lph (13.3 lpm) | – | – |
| Eccentric Shaft 5° | 1200 lph (20 lpm) | 1200 lph (20 lpm) | 1200 lph (20 lpm) | |
| Flow Rate Minimum * | Eccentric Shaft 3° | 10 lph (0.167 lpm) | – | – |
| Eccentric Shaft 5° | 20 lph (0.333 lpm) | 6 lph (0.1 lpm) | 6 lph (0.1 lpm) | |
| Pressure | Temperature of Fluid < 40°C (104°F) | 6 bar (87 psi) | 6 bar (87 psi) | 6 bar (87 psi) |
| Temperature of Fluid > 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) | |
| Maximum Temperature | Fluid | 80°C (176°F) | 80°C (176°F) | 80°C (176°F) |
| CIP | 90°C (194°F) | 90°C (194°F) | 90°C (194°F) | |
| SIP | 130°C (266°F) | 130°C (266°F) | 130°C (266°F) | |
| Autoclave | 130°C (266°F) | 130°C (266°F) | 130°C (266°F) | |
| Pump Speed Range | rpm | 30 – 2,400 | 10 – 2,400 | – |
| Suction Lift Dry at 1800 rpm | Eccentric Shaft 3° | 2.5 – 3 m (8.2-9.8 ft) | – | – |
| Eccentric Shaft 5° | 4 – 4.5 m (13.1-14.7 ft) | 4 – 4.5 m (13.1-14.7 ft) | 4 – 4.5 m (13.1 – 14.7 ft) | |
| Volume Specifications | Approximated Volume per Revolution at Free Output |
9.6 ml (5°) 5.8 ml (3°) |
9.6 ml | 9.6 ml |
| Filling Volume Without Connectors | 75 ml | 75 ml | 75 ml | |
| Connection Specification (Standard) | Connectors | 3/4″ TC | 3/4″ TC | 3/4″ TC |
| Position of Connectors | Inline | Inline | Inline | |
| Number of Flow Directions | 4 | 4 | 4 | |
| Product Wetted Materials (Standard) | Pump Housing | SS316L | SS316L | SS316L |
| Valve Plate | SS316L | SS316L | SS316L | |
| Diaphragms | TPE | TPE | TPE | |
| Valves | EPDM | EPDM | EPDM | |
| O-rings | EPDM | EPDM | EPDM | |
| Certificates/Proofs (Optional) | Elastomere (product wetted) | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe |
| Stainless Steel Parts (product wetted) | 3.1; Surface Roughness; Ferrite Content | 3.1; Surface Roughness; Ferrite Content | 3.1; Surface Roughness; Ferrite Content | |
| Motor (Standard) | Rated speed | 1375 min–1 (50 Hz) | 2400 min–1 | 2400 min–1 |
| Voltage | 230/400 V | 110 – 230 V | 3 x 230V / 3 x 400V | |
| Power | 0.37 kW | 0.485 kW | – | |
| Pump Dimension with Motor and Housing | Length | 487 mm (19.17″) | 489 mm (19.25″) | 387 mm (15.24″) |
| Width | 159 mm (6.26″) | 200 mm (7.87″) | 159 mm (6.26″) | |
| Height | 210 mm (8.27″) | 220 mm (8.66″) | 163 mm (6.42″) | |
| Pump Weight with Motor and Housing | 24 kg (53 lb) | 25 kg (55 lb) | 17.7 kg (39 lb) | |

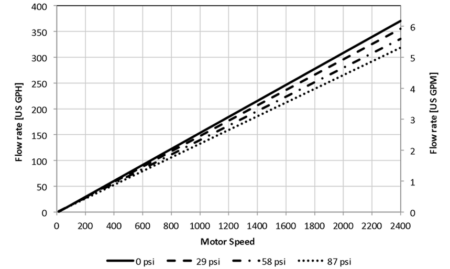

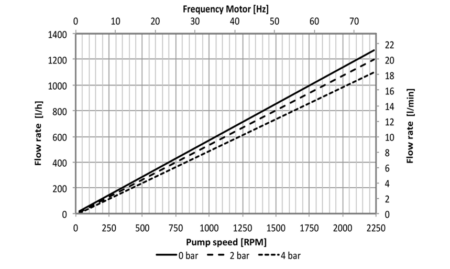

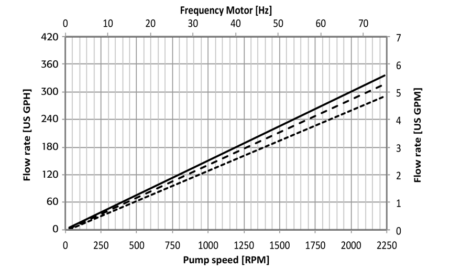

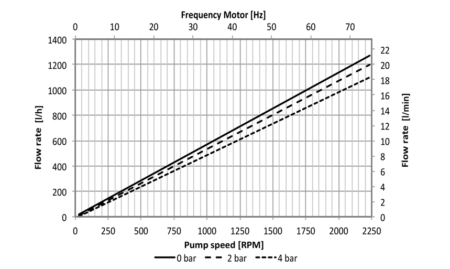

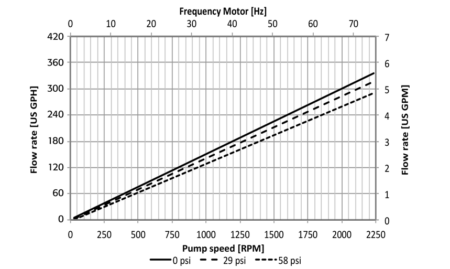

Single-Use Performance
Single-Use Technical Data
| STANDARD MOTOR | QF1200SU | QF1200SU-M | QF1200SU-HT | QF1200SU OEM | |
|---|---|---|---|---|---|
| Flow Rate Maximum | Eccentric Shaft 3° | 800 lph (13.3 lpm) | 800 lph (13.3 lpm) | 800 lph (13.3 lpm) | 800 lph (13.3 lpm) |
| Eccentric Shaft 5° | 1200 lph (20 lpm) | 1200 lph (20 lpm) | 1200 lph (20 lpm) | 1200 lph (20 lpm) | |
| Flow Rate Minimum* | Eccentric Shaft 3° | 10 lph (0.167 lpm) | 10 lph (0.167 lpm) | 10 lph (0.167 lpm) | 10 lph (0.167 lpm) |
| Eccentric Shaft 5° | 20 lph (0.333 lpm) | 20 lph (0.333 lpm) | 6 lph (0.1 lpm) | 6 lph (0.1 lpm) | |
| Pressure | Temperature of Fluid < 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) |
| Temperature of Fluid > 40°C (104°F) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) | 4 bar (58 psi) | |
| Maximum Temperature | Fluid | 60°C (140°F) | 50°C (122°F) | 60°C (140°F) | 60°C (140°F) |
| Autoclave | 130°C (266°F) | 130°C (266°F) | 130°C (266°F) | 130°C (266°F) | |
| Pump Speed Range | rpm | 30 – 2,400 | 30 – 2,400 | 10 – 2,400 | 10 – 2,400 |
| Suction Lift Dry at 1800 rpm | Eccentric Shaft 3° | 2.5 – 3 m (8.2-9.8 ft) | 2-2.5 m (6.6-8.2 ft) | – | – |
| Eccentric Shaft 5° | 4 – 4.5 m (13.1-14.7 ft) | 3-3.5 m (9.8-11.5 ft) | 4 – 4.5 m(13.1-14.7 ft) | 4 – 4.5 m (13.1 – 14.7 ft) | |
| Volume Specifications | Approximated Volume per Revolution at Free Output |
9.6 ml (5°)5.8 ml (3°) | 9.6 ml (5°)5.8 ml (3°) | 9.6 ml (5°) | 9.6 ml |
| Filling Volume Without Connectors | 75 ml | 75 ml | 75 ml | 75 ml | |
| Connection Specification (Standard) | Connectors | 3/4″ TC | 3/4″ TC | 3/4″ TC | 3/4″ TC |
| Position of Connectors | Inline | Front | Inline | Inline | |
| Number of Flow Directions | 4 | 4 | 4 | 4 | |
| Product Wetted Materials (Standard) | Pump Chamber | PP | PE injection molded** | PP | PP |
| Valve Plate | PP | PE injection molded | PP | PP | |
| Diaphragms | TPE | TPE | TPE | TPE | |
| Valves | EPDM | EPDM | EPDM | EPDM | |
| O-rings | EPDM | EPDM | EPDM | EPDM | |
| Certificates/Proofs (Optional) | Elastomere (product wetted) | USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661 |
USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661 |
USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661 |
USP <88> Cl. VI; FDA21CFR177; BSE/TSE Safe; USP 87/381/661 |
| Motor (Standard) | Rated speed | 1375 min-1 (50 Hz) | 1375 min-1 (50 Hz) | 2200 min-1 | 2400 min-1 |
| Voltage | 230/400 V | 230/400 V | 110 – 230 V | 3 x 230V / 3 x 400V | |
| Power | 0.37 kW | 0.37 kW | 0.485 kW | – | |
| Pump Dimension with Motor and Housing | Length | 497 mm (19.56″) | 503 mm (19.8″) | 499 mm (19.65″) | 387 mm (15.24″) |
| Width | 159 mm (6.26″) | 159 mm (6.26″) | 200 mm (7.87″) | 159 mm (6.26″) | |
| Height | 210 mm (8.27″) | 210 mm (8.27″) | 220 mm (8.66″) | 163 mm (6.42″) | |
| Pump Weight with Motor and Housing | 21 kg (46 lb) | 20 kg (44 lb) | 21 kg (46 lb) | 13.6 kg (30 lb) | |
Downloads
Spec Sheet for QF 1200 – Single Use
View Spec Sheet
Spec Sheet for QF1200S – Multiple Use
View Spec Sheet
Flyer for QF1200S – High Turndown
View Flyer
Spec Sheet of QF1200S – High Turndown Multiple Use
View Spec Sheet
Flyer – Comparison of Quattroflow Pumps & Lobe Pumps
View Flyer
Brochure for Quattroflow Product Range
View Brochure

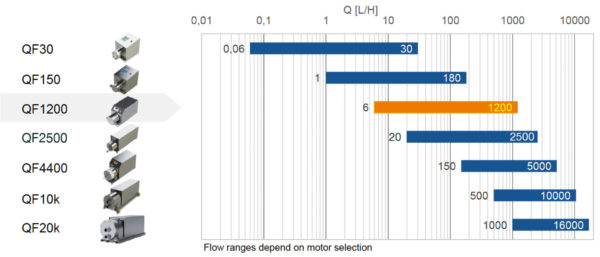

More on Quattroflow
Since launching their first pump in the early 2000s, Quattroflow has established itself as the go-to brand for handling sensitive biopharmaceuticals in applications including chromatography, tangential flow filtration (TFF), and more. With flow rates ranging from 0.06 – 16000LPH, the technology is completely scalable to your application, whether you are in a small scale laboratory or a large scale cGMP suite.
